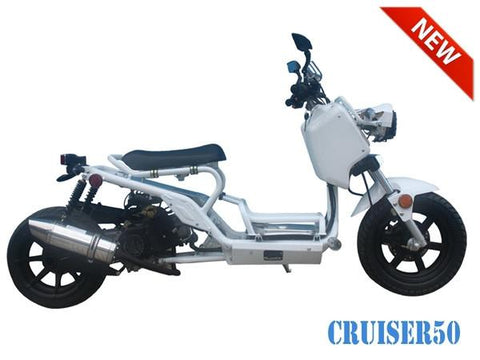

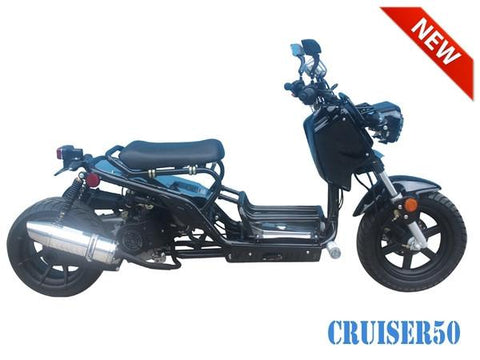

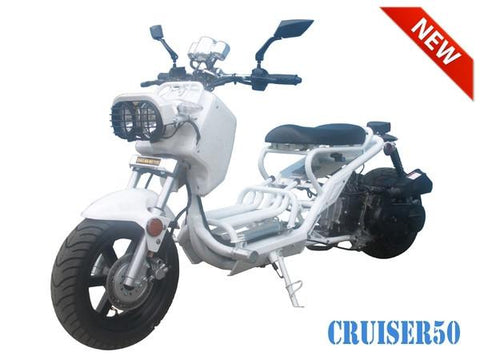

TaoTao Cruiser 50 Gas Street Legal Scooter
.png?v=116696369128456642831770941955)
WHAT RIDERS SAY
The TaoTao Cruiser 50 Gas Street Legal Scooter has the looks of a combined scooter, a chopper and a jeep that you could take on a safari. Lowered, stretched, great looking? Yes to all of the above!
The motorcycle-like design will, for sure, be a great and practical ride to have in the city, grabing everyone’s attention and getting you places in style and comfort, not to mention the low consumption of 115 Mpg and about an annual cost of $1200.
The seat is very comfortable, as it is wide enough to accomodate you easily and also, the place for your legs gives you the necessary stability to ride safely, at a maximum speed of 31 mph.
The front brakes are onhydraulic disc and the rear ones on drum. You’ll be able to start it easily, either electrically or with a kick! The headlights are protected, thus not having to worry about them getting damaged and the handlebars will give you a comfortable position for your back while on the scooter.
This scooter will be a good investment for many years!
All the information you need to know about it can be found below and don’t forget to give the section about services included with your purchase a look!
SPECIFICATIONS:
|
DIMENSION
|
L×W×H (Overall) |
78x27x41 Inches (1990×690×1030mm) |
|
|
Wheel Base |
61 Inches (1550mm) |
||
|
Ground Clearance |
4.33 Inches (110mm) |
||
|
Seat Light |
27 Inches (690mm) |
||
|
N.W |
202 LBS (92 Kg) |
||
|
G.W |
213 LBS (97 Kg) |
||
|
ENGINE |
Serial |
1P39QMB 4STROKE |
|
|
Bore×Stroke (mm) |
39×41.5 |
||
|
Displacement (ml) |
49.6 |
||
|
Compress Rate |
10.4:1 |
||
|
Max Torque |
2.8/4500 n.m (r/min) |
||
|
Fuel Consumption (g/kW·h) |
400 |
||
|
Start |
Electric / Kick |
||
|
Ignition |
C.D.I |
||
|
Transmission |
V-Belt |
||
|
Fuel System |
Carb. |
PD19J |
|
|
Fuel Tank |
1.3 Gallon (4.90 L) |
||
|
Driven System |
Tire (Front) |
120/70-12 |
|
|
Tire (Rear) |
205/30-12 |
||
|
Brake System |
Brake Type |
F |
Hydraulic Disc |
|
R |
Drum |
||
|
Electric System |
Spark Plug Type / Gap(mm) |
A7RTC / 0.6~0.7 |
|
|
Battery Type |
12V 7Ah |
||
|
Main Performance |
Max Speed |
31 mph (50 km/h) |
|
|
Fuel Consumption |
115 Mpg (2.0 L/100Km) |
||
Specifications
- Coverage: ICEBEAR TaoTao Cruiser 50 Gas Street Legal Scooter
- Torque specs & capacities
- Component locations
Maintenance
- Service intervals
- Common procedures
Troubleshooting
- Diagnostic flowcharts
- Common faults & fixes
FAQs
- Immediate access after payment
- Suitable for DIY & pro use
ICEBEAR TaoTao Repair & Overhaul Manual
When a TaoTao needs servicing, guesswork is not an option. This official ICEBEAR 50CC Scooter for the TaoTao Cruiser 50 Gas Street Legal Scooter provides the complete technical foundation required — including the Cruiser and related subsystems — to perform every repair accurately and efficiently.
Beyond basic maintenance, this manual supports full component-level work on the TaoTao and Scooter. Whether you are a dealer technician or independent mechanic, the depth of coverage here matches what ICEBEAR provides to its own service network.
Inside This ICEBEAR Service Manual
- Detailed overhaul sequences for all TaoTao major assemblies
- Electrical schematics, fuse layouts, and connector IDs
- ICEBEAR factory torque specs and clearance tolerances
- Hydraulic circuit diagrams and pressure settings
- Maintenance schedules, filter specs, and fluid types
- Searchable digital format — immediate download access
Stop searching and start repairing. This ICEBEAR 50CC Scooter for the TaoTao Cruiser 50 Gas Street Legal Scooter gives you the exact TaoTao and Cruiser procedures required — available immediately as a digital download after purchase.
