Product Description

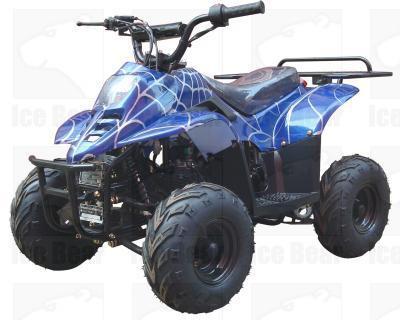

Want to stand out from the crowd and have a practical scooter while you’re at it? Then this is the model for you – the Ice Bear PAH110-2, is a good-looking scooter, giving the impression of being ready at any moment to tackle the desert and off-road trails.
With its automatic transmission, 4 stroke engine and 6.7 hp, you’ll pass through the city streets and maybe even country roads with no problems.
All the information you need to know about it can be found below and don’t forget to pass to the review section to read the opinions of our clients who have already purchased one!
| Horsepower | 6.7 hp |
| Engine Type | Single Cylinder, 4-Stroke |
| Cooling | Air Cooled |
| Drive System | Chain |
| Piston Displacement | 107cc |
| Bore and Stroke | 2.06 inches x 1.95 inches |
| Compression Ratio | 8.0:1/9.0:1 |
| Maximum Power | 5.0/8000kw/r/min |
| Maximum Torque | 6.5/6000N.m./rpm |
| Starter | Electric |
| Transmission | Automatic |
| Length | 53 inches |
| Width | 30 inches |
| Height | 34 inches |
| Seat Height | 22 inches |
| Wheelbase | 31 inches |
| Ground Clearance | 3.3 inches |
| Front Tires | 16*8-6; 145/70-6 |
| Rear Tires | 16*8-6; 145/70-6 |
| Ignition | CDI |
| Maximum Speed | 28 mph |
| Net Weight | 158.7 lbs |
| Gross Weight | 176.4 lbs |
| Battery | 12V |
| Frame | Steel |
| Wheel Type | Steel |
| Engine Oil Capacity | 0.75 gal |
| Front Suspension | Double A-Arm |
| Rear Suspension | Single Swing Arm |
| Packing Size | 44 inches x 27 inches x 23 inches |
| Remote Control | Start &Alarm & Kill Button/Start & Kill Button |
| Pull Kill Switch | yes |
All Scooters we offer come with some assembly required and usually take around 60-90minutes to complete. Assembly consists of attaching the front wheel (one bolt), front fender (4 screws), handlebars (one bolt installation) and the trunk (4 bolts). We highly recommend you use a thread-locking agent on all parts such as Loctite. All materials needed to perform assembly are included with the scooters, including basic hand tools.
Limited Warranty
If you provide a receipt for initial PDI and assembly from a professional mechanic shop, parts are covered under this warranty to be free from manufacturer defects for 60 days and the engine for 6 months. Without PDI and assembly by a certified/professional mechanic, parts are covered under this warranty will be free for 30 days and engine for one month.
If any parts received damaged due to poor packaging or bad workmanship by the manufacturer, report such damage within 5 days of receipt of the unit with your order number, VIN # and pictures of damage showing the vehicle in the crate or under assembly.
Warranty covers core components, but not wear items. Call if you would like details before placing your order.
Please note that unless you select and pay for a per-delivery inspection and dealer prep, these units are drop-shipped without said inspections. We strongly urge customers to perform an inspection of the scooter upon delivery. If any damages are found please have the driver note on the delivery slip of the damage. We will replace any damaged parts during transit for free OR replace the entire scooter at no charge to you. We strive to make sure each customer is 100% satisfied with their scooter and will make sure anything broken is replaced. We will NOT accept returns that were not authorized prior to being sent back. Simply contact our support staff of any issues you come across and we will get it resolved quickly.
